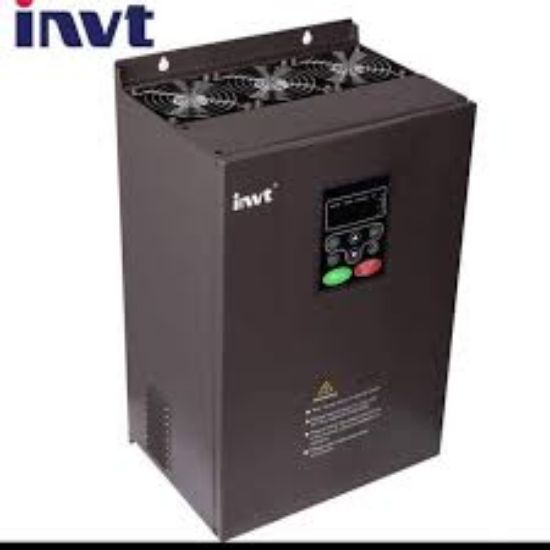

VFD 90/110

🔧 90kW VFD Full Specifications 📦 General Information Model: [Insert Model Name] Power Rating: 90 kW (Kilowatts) Motor Compatibility: 3-Phase Induction / Permanent Magnet Motor Application: Industrial automation, HVAC, pumps, fans, compressors, conveyors, etc. ⚡ Electrical Specifications Parameter Value Input Voltage 3-phase 380V to 480V ±15% Input Frequency 50/60 Hz ±5% Output Voltage 0 to Input Voltage Output Frequency 0.1 – 600 Hz Output Current ~180A (varies by model) Overload Capacity 150% for 60s, 180% for 3s Efficiency >95% Power Factor >0.95 Control Modes V/F, SVC (Sensorless Vector), Torque Control, Closed-loop (optional) Speed Control Range 1:100 (V/F), 1:1000 (Vector) 🧠 Control Features Digital Inputs: 5 to 8 (programmable) Digital Outputs: 2 to 4 (relay/transistor) Analog Inputs: 2 (0–10V, 4–20mA) Analog Outputs: 1 (0–10V / 4–20mA) Communication Ports: RS-485 (Modbus RTU standard) Optional Communication: CANopen, Profibus, Ethernet/IP Display Panel: Detachable LCD/LED keypad PID Controller: Built-in Multi-speed Control: Up to 16 preset speeds Auto-tuning: Yes (motor parameter auto-detection) Braking Unit: Built-in (external resistor required) DC Reactor (Choke): Optional for harmonic suppression 🛡️ Protection Functions Overvoltage Protection Undervoltage Protection Overcurrent Protection Ground Fault Protection Motor Stall / Block Protection Overtemperature Protection Phase Loss Detection Short Circuit Protection Communication Failure Protection 🌍 Environmental Specifications Parameter Value Operating Temp. -10°C to +50°C (Derate above 40°C) Storage Temp. -20°C to +60°C Humidity <95% RH, non-condensing Altitude ≤1000m (Derate above 1000m) Vibration Resistance <0.5G 📐 Mechanical Specifications Parameter Value Cooling Method Forced Air Cooling Enclosure Protection IP20 (standard), IP55 (optional) Mounting Type Wall-mounted / Floor-mounted Dimensions (HxWxD) Varies by brand (~800×400×350 mm) Weight Approx. 50 – 70 kg ✅ Certifications & Standards Standards: IEC 61800-3, IEC 61800-5-1 Certifications: CE, RoHS, UL (depends on manufacturer) 🛠️ Common Applications Water Pumping Systems HVAC Systems (Air Handling Units, Chillers, Fans) Compressors Conveyor Belts Elevators and Hoists Industrial Mixers and Agitators Textile and Plastic Machinery
Manufacturer: HTS
Call for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

🔧 90kW VFD Full Specifications

📦 General Information

  • Model: [Insert Model Name]

  • Power Rating: 90 kW (Kilowatts)

  • Motor Compatibility: 3-Phase Induction / Permanent Magnet Motor

  • Application: Industrial automation, HVAC, pumps, fans, compressors, conveyors, etc.

⚡ Electrical Specifications

Parameter Value
Input Voltage 3-phase 380V to 480V ±15%
Input Frequency 50/60 Hz ±5%
Output Voltage 0 to Input Voltage
Output Frequency 0.1 – 600 Hz
Output Current ~180A (varies by model)
Overload Capacity 150% for 60s, 180% for 3s
Efficiency >95%
Power Factor >0.95
Control Modes V/F, SVC (Sensorless Vector), Torque Control, Closed-loop (optional)
Speed Control Range 1:100 (V/F), 1:1000 (Vector)

🧠 Control Features

  • Digital Inputs: 5 to 8 (programmable)

  • Digital Outputs: 2 to 4 (relay/transistor)

  • Analog Inputs: 2 (0–10V, 4–20mA)

  • Analog Outputs: 1 (0–10V / 4–20mA)

  • Communication Ports: RS-485 (Modbus RTU standard)

  • Optional Communication: CANopen, Profibus, Ethernet/IP

  • Display Panel: Detachable LCD/LED keypad

  • PID Controller: Built-in

  • Multi-speed Control: Up to 16 preset speeds

  • Auto-tuning: Yes (motor parameter auto-detection)

  • Braking Unit: Built-in (external resistor required)

  • DC Reactor (Choke): Optional for harmonic suppression

🛡️ Protection Functions

  • Overvoltage Protection

  • Undervoltage Protection

  • Overcurrent Protection

  • Ground Fault Protection

  • Motor Stall / Block Protection

  • Overtemperature Protection

  • Phase Loss Detection

  • Short Circuit Protection

  • Communication Failure Protection

🌍 Environmental Specifications

Parameter Value
Operating Temp. -10°C to +50°C (Derate above 40°C)
Storage Temp. -20°C to +60°C
Humidity <95% RH, non-condensing
Altitude ≤1000m (Derate above 1000m)
Vibration Resistance <0.5G

📐 Mechanical Specifications

Parameter Value
Cooling Method Forced Air Cooling
Enclosure Protection IP20 (standard), IP55 (optional)
Mounting Type Wall-mounted / Floor-mounted
Dimensions (HxWxD) Varies by brand (~800×400×350 mm)
Weight Approx. 50 – 70 kg

✅ Certifications & Standards

  • Standards: IEC 61800-3, IEC 61800-5-1

  • Certifications: CE, RoHS, UL (depends on manufacturer)

🛠️ Common Applications

  • Water Pumping Systems

  • HVAC Systems (Air Handling Units, Chillers, Fans)

  • Compressors

  • Conveyor Belts

  • Elevators and Hoists

  • Industrial Mixers and Agitators

  • Textile and Plastic Machinery
